Interface | 4 x Ethernet+PoE port (RJ45) 10/100/1000Base-Tx 2 x Optical port (SFP) 1000Base-Fx |

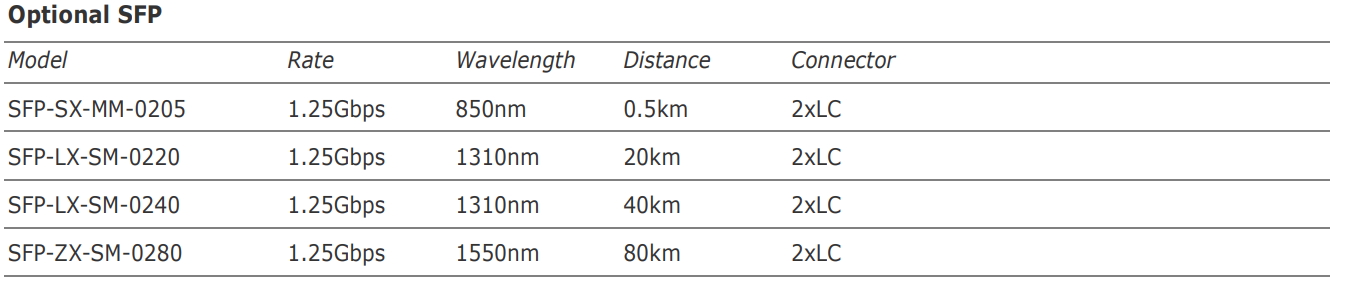

Optical Port | Available for 1310nm and 1550nm Single mode, 850nm Multi mode Transfer Distance: up to 120km Connectors: SFP Fiber core: 9/125μm on single-mode fiber; 50/125μm and 62.5/125μm on multi-mode fiber |
Ethernet Port | Cable: Cat 5/5e/6 UTP cable Available speed: force 10Mbps, force 100Mbps , force 1000Mbps and auto-detective 10/100/1000Mbps. Full-Duplex and Half-Duplex auto-negotiation Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing |
Standard | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX/FX) IEEE802.3ab (1000Base-T) IEEE802.3z (1000Base-SX/LX/CX/T) IEEE802.3x (Flow control) IEEE802.3af (Power over Ethernet Standard) IEEE802.3at (Power over Ethernet enhancements Standard) |
PoE Specification | Power Output: PoE 48V DC PoE Power Supply type: End-Span Power Pin Assignment: 1/2(+), 3/6(-) PoE Power Budget: Each port provides max 30W feed power |
Switch Properties | MAC Table: 16K Packet Buffer: 2Mbit Switching Delay: <5μs |
LED Indicators | Power Status, FX Link/Act, TX Link/Act |
Power Requirement | 48V DC, External AC to DC adapter |
Physical Characteristics | Housing: Metal enclosure Dimensions: 214 x 105 x 32mm Weight: 0.6kg |
Environmental Limits | Operating Temperature: -10°C to 70°C Storage Temperature: -20°C to 70°C Operating Humidity: 10% to 90% RH (non-condensing) Storage Humidity: 5% to 90% RH (non-condensing) |
Warranty | 3 years |
