4 channels full-duplex transceiver modules
Transmission data rate up to 10.5Gbps per channel
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Low power consumption <1.5W
Hot Pluggable QSFP form factor
Maximum link length of 300m on OM3 Multimode
Fiber (MMF)and 400m on OM4 MMF

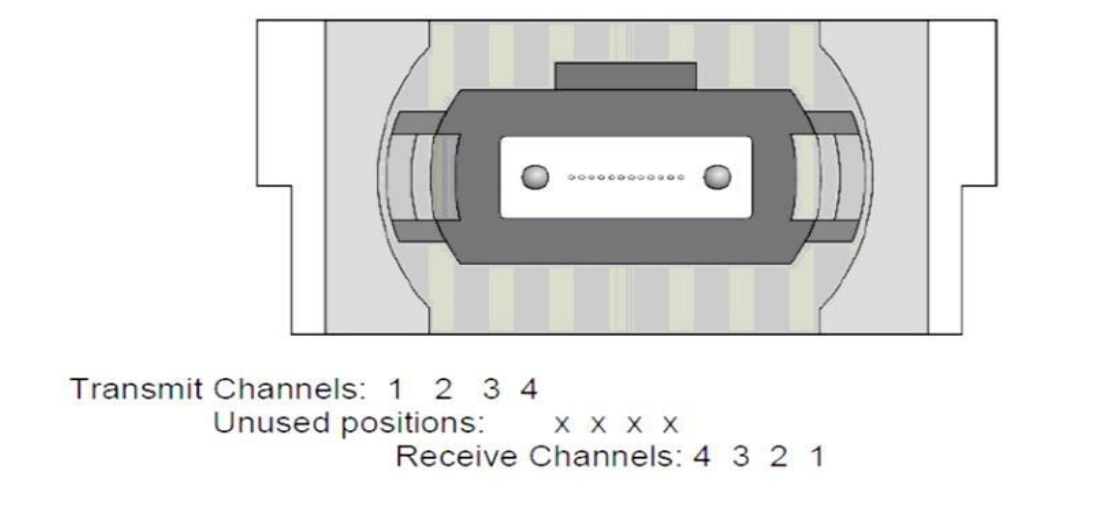

Single MPO connector receptacle
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C

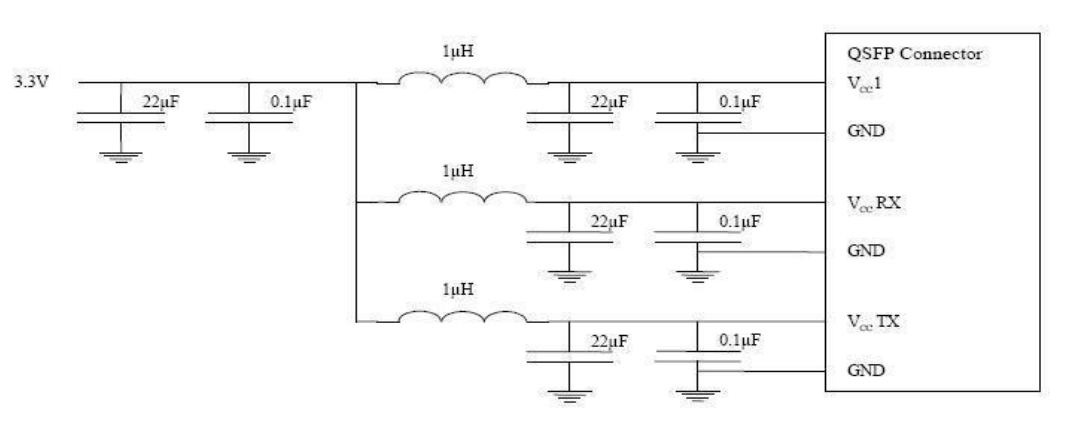

3.3V power supply voltage
RoHS 6 compliant
