Full duplex 4 channel 1310nm parallel module
Transmission data rate up to 11.3Gb/s per channel
SFF-8436 QSFP+ compliant
Hot pluggable electrical interface
Differential AC-coupled high speed data interface
4 channels 1310nm FP array
4 channels PIN photo detector array
Maximum link length of 2km on G652 SMF

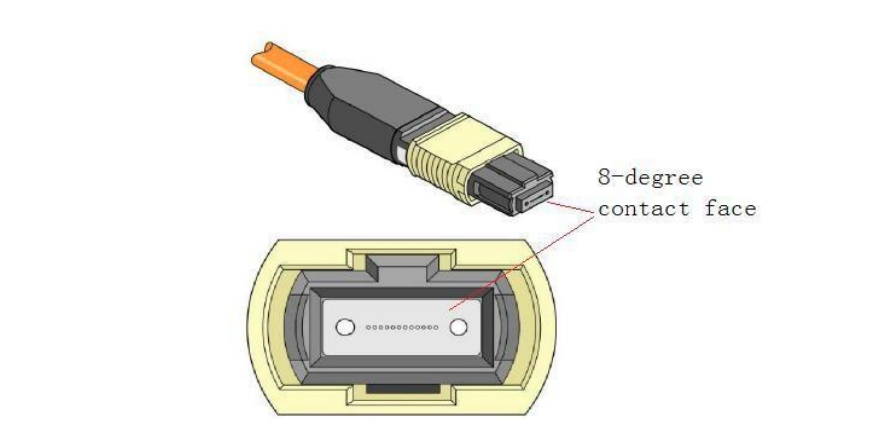

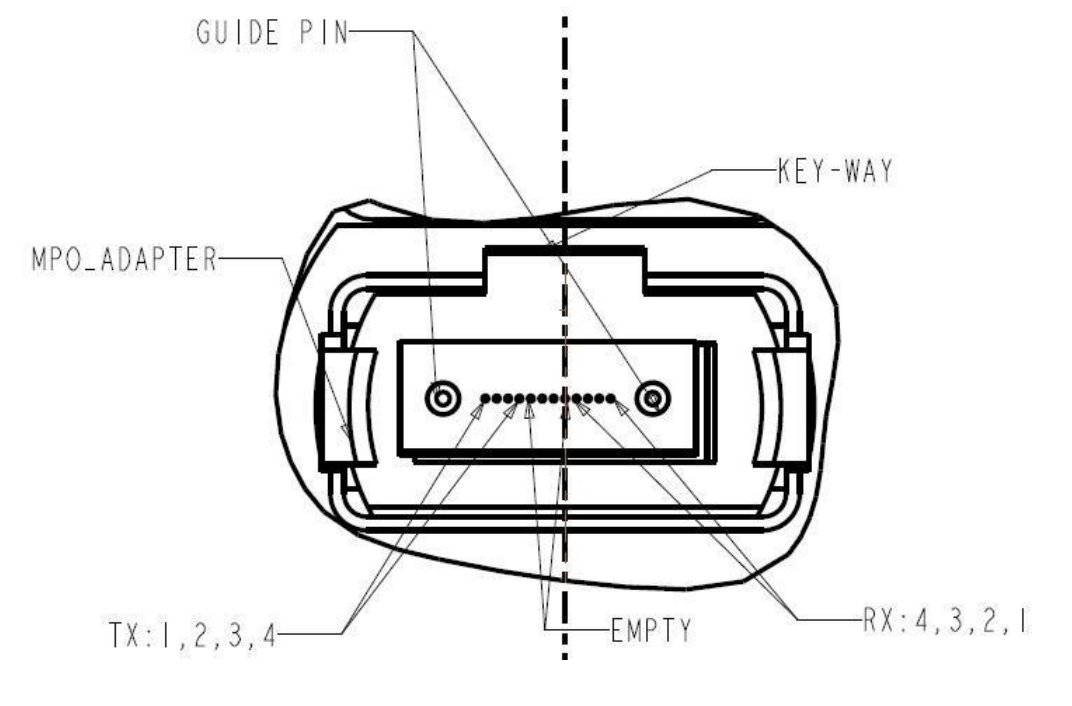

Single male MPO(APC 8-degree) connector receptacle
Power consumption <3.5W
Housing isolated from connector ground
Operating case temperature 0°C to +70°C
3.3V power supply voltage RoHS 6 compliant
