Full duplex 4 channel 1310nm parallel module
SFF-8436 QSFP+ compliant
Hot pluggable electrical interface
Differential AC-coupled high speed data interface
4 channels 1310nm DFB laser
4 channels PIN photo detector array
Maximum link length of 10km on G652

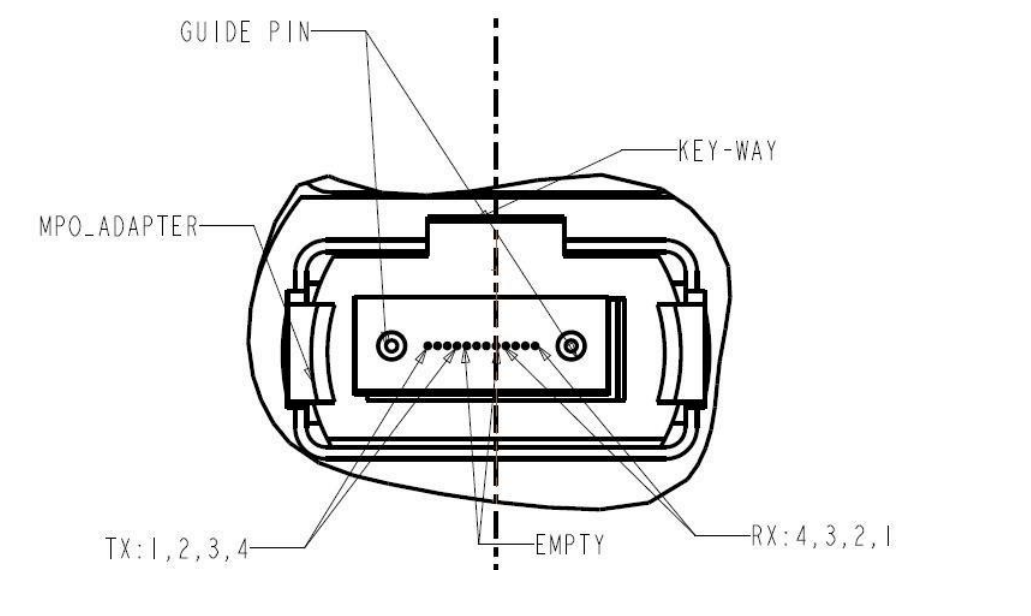

Single male MPO(APC 8-degree) connector receptacle
Power consumption <3.5W
Housing isolated from connector ground
Operating case temperature 0°C to +70°C

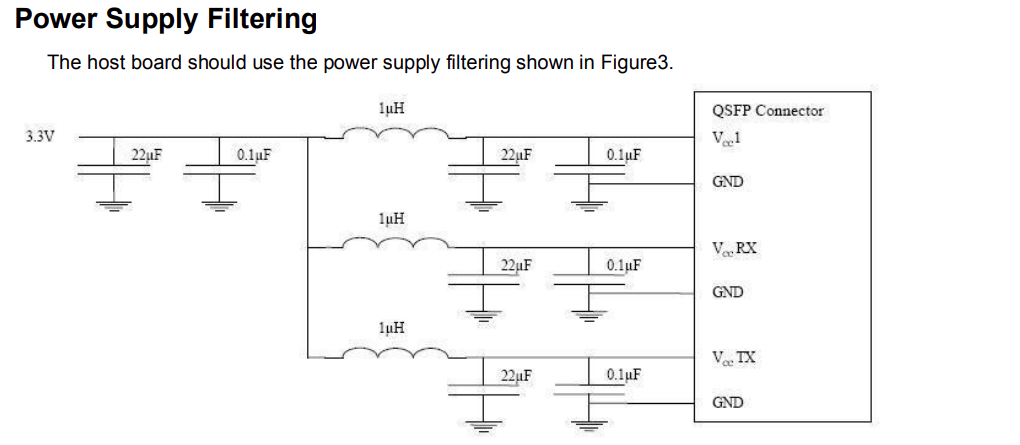

3.3V power supply voltage
RoHS6 compliant
