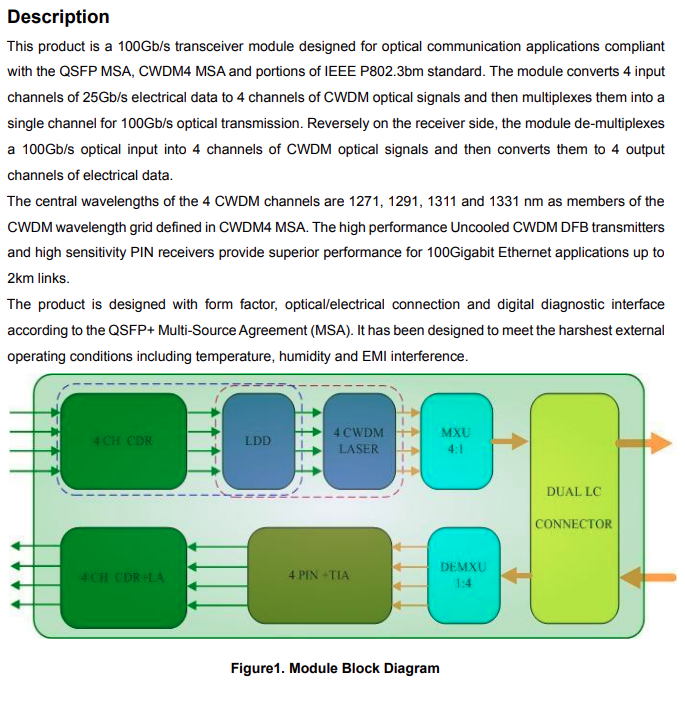

4 channels full-duplex transceiver modules
Transmission data rate up to 26Gbps per channel
4 x 26Gb/s DFB-based CWDM uncooled transmitter
4 channels PIN ROSA
Internal CDR circuits on both receiver and transmitter
channels
Non airtight optical engine design
Qualified under case temperature 85°C and humidity 90% @500 hours (the variation of TX≤2.5 dBm,
RX≤1.5 dBm)
Low power consumption <3.5W
Hot Pluggable QSFP form factor
Up to reach 2km for G.652 SMF[with KR4 FEC]
Duplex LC receptacles

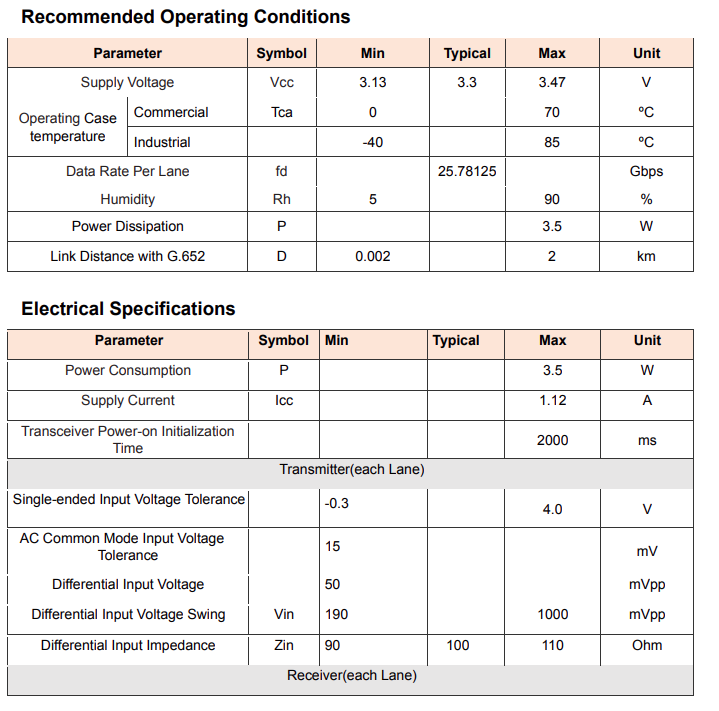

Operating case temperature: Commercial: 0°C to +70°C
Industrial: -40°C to +85°C
3.3V power supply voltage
RoHS 6 compliant(lead free)
