Giới thiệu
OPT-IES1038M series adopts the OPT-Ring Ring network technology, the user can easily set Redundance Ring Network in order to increase network reliability, moreover also support a variety of network management functions, such as: 802.1Q VLAN, QOS, IGMP Static Multicast, Port Trunk, Port Mirroring, ect. They can be applied extensively in wind power, distribution network automation, subway PIS, power SCADA, wastewater treatment, metallurgy, intelligent transportation, rail transit, and many other industries.
Tính năng
●Support OPT-Ring Redundance Ring Network technology
●Support IEEE802.1Q VLAN setting, effective control of the broadcast domain.
●Support IEEE802.1p-QoS function.
●IEEE 802.3at, IEEE 802.3af PoE standard compliance
●Support PD detection and PD classification
●Support IGMP Static Multicast, Port Trunk, Port Mirroring, ect.
●Extends distances ranging from 2km (multi-mode fiber) to 120km (single mode fiber)
●Supports auto MDI/MDIX function
●Supports DIN-Rail and hang wall mounting
●Support 8k MAC address
●Support dual power supply backup
●IP40 protection class
Thông số kỹ thuật
| Interface | 8 x Ethernet+PoE port (RJ45) 10/100Base-Tx 2 x Optical port (SFP) 1000Base-Fx 1 x Console port (RJ45) |
| Optical Port | Available for 1310nm and 1550nm Single mode, and 850nm Multi mode Transfer Distance: up to 120km Connectors: SFP Fiber core: 8.3μm, 8.7μm, 9μm and 10μm on single-mode fiber; 50, 62.5 and 100μm on multi-mode fiber |
| Ethernet Port | Available speed: force 10Mbps, force 100Mbps and auto-detective 10/100Mbps Full-Duplex and Half-Duplex auto-negotiation Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing |
| Standard | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX/FX) IEEE802.3ab (1000Base-T) IEEE802.3z (1000Base-SX/LX/CX/T) IEEE802.3x (Flow control） IEEE802.1Q (VLAN) IEEE802.1p (Class of Service) IEEE 802.1w (RSTP) SNMP v1/v2c (Simple Network Management Protocol) IEEE802.3af (Power over Ethernet Standard) IEEE802.3at (Power over Ethernet Enhancements Standard) |
| Switch Properties | MAC Table: 8K Packet Buffer: 1Mbit Switching Delay: <5μs |
| LED Indicators | Power Status, Speed Status, FX Link/Act, TX Link/Act |
| PoE Specification | Power Output: PoE 48V DC PoE Power Supply type: End-Span Power Pin Assignment: 1/2(+), 3/6(-) PoE Power Budget: Each port provides max 30W feed power |
| Power Requirement | Input: 48VDC Consumption：MAX 6.6W(no PD), 246.6W(full PD) Reverse Connection Protection: Support Redundancy Protection: Support Dual Power: Support |

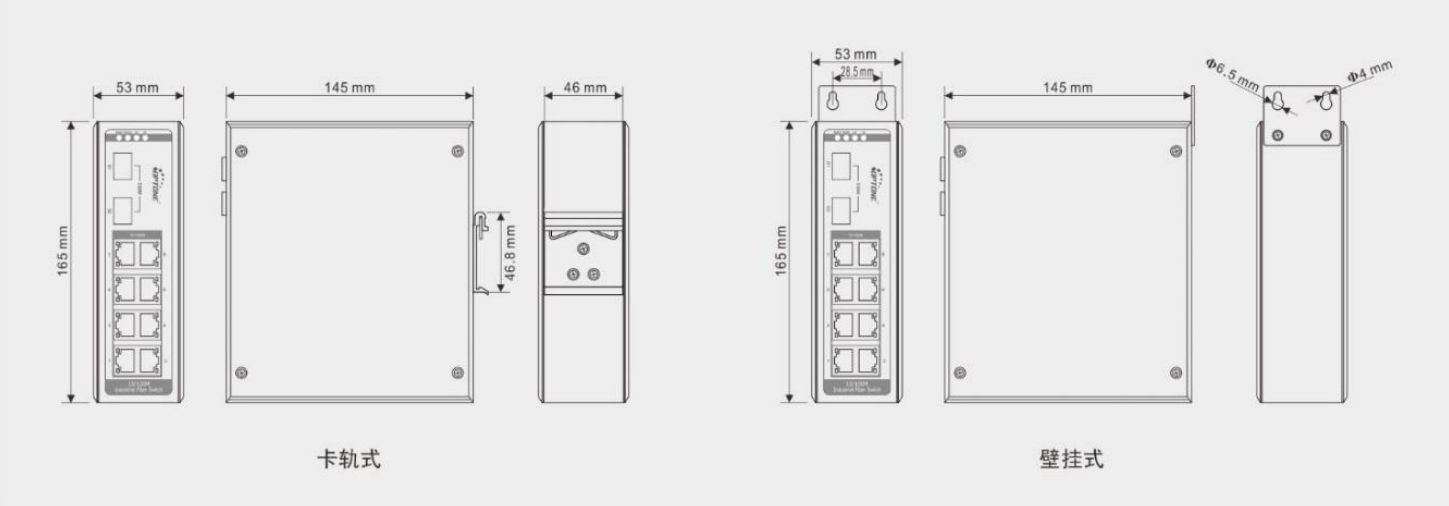

| Physical Characteristics | Housing: Metal enclosure Protection Class: IP40 Dimensions: 53 x 165 x 145mm Weight: 0. 9kg Installation: DIN-Rail or Panel mounting |
| Environmental Limits | Operating Temperature: -40°C to 85°C Storage Temperature: -40°C to 85°C Operating Humidity: 10% to 95% RH (non-condensing) Storage Humidity: 5% to 95% RH (non-condensing) |
| Industrial Standard | EMI: FCC/CE/LVD/EMC EMS: IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Warranty | 5 years |
Thông tin sản phẩm
| Model No. | Description |
|---|---|
| OPT-IES1038MP | 8*10/100Base-Tx(PoE) to 2*GE SFP Fiber ports, with Managed |
| Optional SFP | |
| SFP-SX-MM-0205I | SFP，1.25G，850nm，0.5km，LC，Industrial |
| SFP-LX-SM-0220I | SFP，1.25G，1310nm，20km，LC，Industrial |
| SFP-LX-SM-0240I | SFP，1.25G，1310nm，40km，LC，Industrial |
| SFP-ZX-SM-0280I | SFP，1.25G，1550nm，80km，LC，Industrial |
