Gới thiệu
OPT-IES2008P is OPTONE produced unmanaged 8-port PoE switches, providing 8-10/100/1000Base-TX PoE ports compliant with IEEE802.3af and IEEE802.3at. While transmitting data over the cable, each PoE port can output 30 watts to PoE terminals directly, eliminating the need for additional wiring.
Tính năng
●Both standard and wide operating temperature
●Complies with IEEE 802.3, IEEE 802.3u/z/ab/z
●IEEE 802.3at/af PoE standard compliance
●Support PD detection and PD classification
●Maximum frame size of 1632 bytes
●Supports auto MDI/MDIX function
●Supports DIN-Rail and hang wall mounting
●Status LED for easy monitoring of device status
●Support 8k MAC address
●Support dual power supply backup
●IP40 protection class
Thông số kỹ thuật
| Interface | 8 x Ethernet+PoE port (RJ45) 10/100/1000Base-Tx |
| Ethernet Port | Available speed: force 10Mbps, force 100Mbps, force 1000Mbps and auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing |
| Standard | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX/FX) IEEE802.3ab (1000Base-T) IEEE802.3z (1000Base-SX/LX/CX/T) IEEE802.3af (Power over Ethernet Standard) IEEE802.3at (Power over Ethernet Enhancements Standard) |
| Switch Properties | MAC Table: 8K Packet Buffer: 1Mbit Switching Delay: <5μs |
| LED Indicators | Power Status, Speed Status, TX Link/Act |
| PoE Specification | Power Output: PoE 48V DC PoE Power Supply type: End-Span Power Pin Assignment: 1/2(+), 3/6(-) PoE Power Budget: Each port provides max 30W feed power |
| Power Requirement | Input: 48V DC Consumption：MAX 11W(no PD), 251W(full PD) Reverse Connection Protection: Support Redundancy Protection: Support |

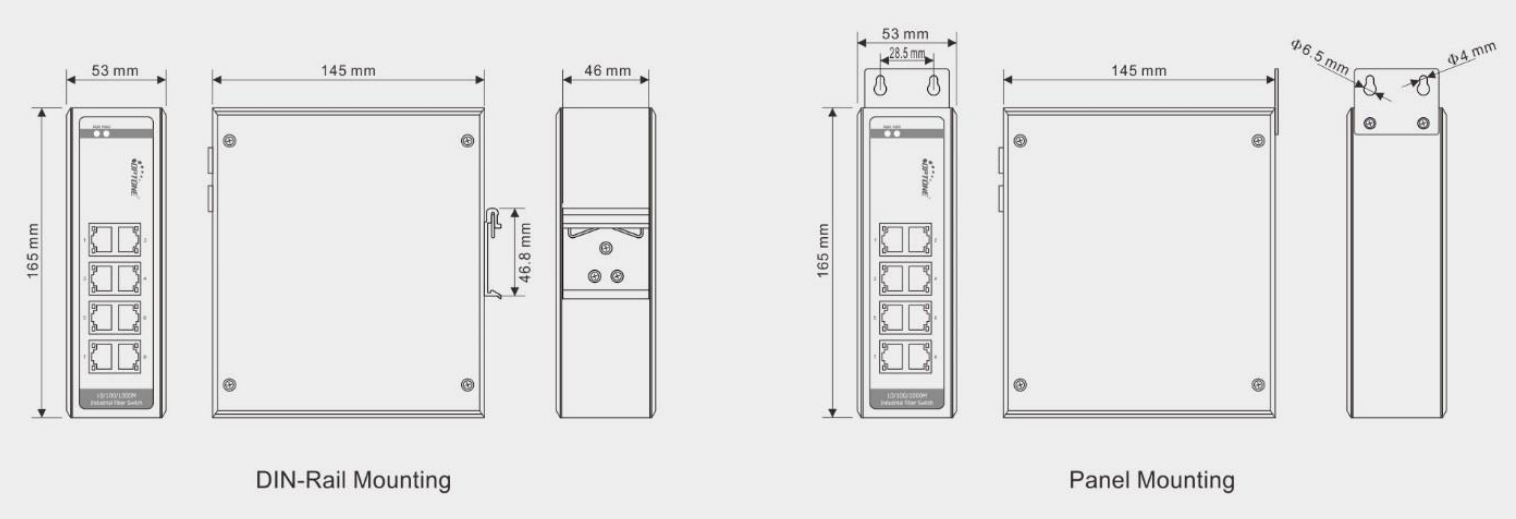

| Physical Characteristics | Housing: Metal enclosure Protection Class: IP40 Dimensions: 53 x 165 x 145mm Weight: 0. 9kg Installation: DIN-Rail or Panel mounting |
| Environmental Limits | Operating Temperature: -40°C to 85°C Storage Temperature: -40°C to 85°C Operating Humidity: 10% to 95% RH (non-condensing) Storage Humidity: 5% to 95% RH (non-condensing) |
| Industrial Standard | EMI: FCC/CE/LVD/EMC EMS: IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Warranty | 5 years |
Thông tin sản phẩm
| Model No. | Description |
|---|---|
| OPT-IES2008P | 8*10/100/1000Base-Tx(PSE), Industrial |
