Gới thiệu
OPT-IES2024P is OPTONE produced unmanaged 6-port PoE switches, providing 2 Gigabit Ethernet fiber optional port and 4 10/100/1000Base-TX PoE ports compliant with IEEE802.3af and IEEE802.3at. While transmitting data over the cable, each PoE port can output 30 watts to PoE terminals directly, eliminating the need for additional wiring. OPT-IES2024P supports wide operating temperature range from -40°C to 85°C, metal housing with IP40 protection class and redundant power inputs, becoming an economical and harsh environment resistant solution for the ITS, video surveillance and other automation applications.
Tính năng
●Green Ethernet solution with ultra low power consumption design
●Both standard and wide operating temperature
●Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x auto-negotiation
●IEEE 802.3at, IEEE 802.3af PoE standard compliance
●Support PD detection and PD classification
●Supports auto MDI/MDIX function
●Status LED for easy monitoring of device status
●Supports up to 10K Byte Jumbo frames
●Support 8k MAC address

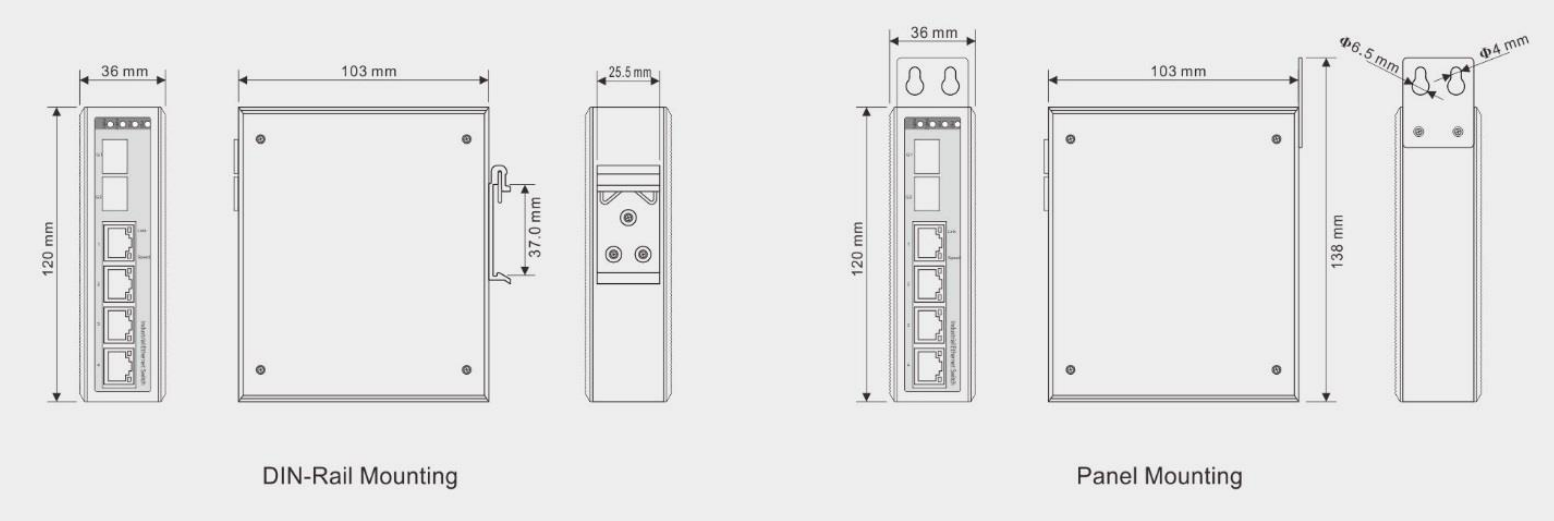

●Supports DIN-Rail and hang wall mounting
●Support dual power supply backup
●IP40 protection class
Thông số kỹ thuật
