Model. No. | FV05D/2-275S |
SPD protection conforms to IEC 61643-11 / EN 61643-11 | Type 2+3 |
SPD installation type conforms to IEC 61643-11 / EN 61643-11 | Class II+III |
Protection level conforms to DIN VDE0675-6 | C+D |

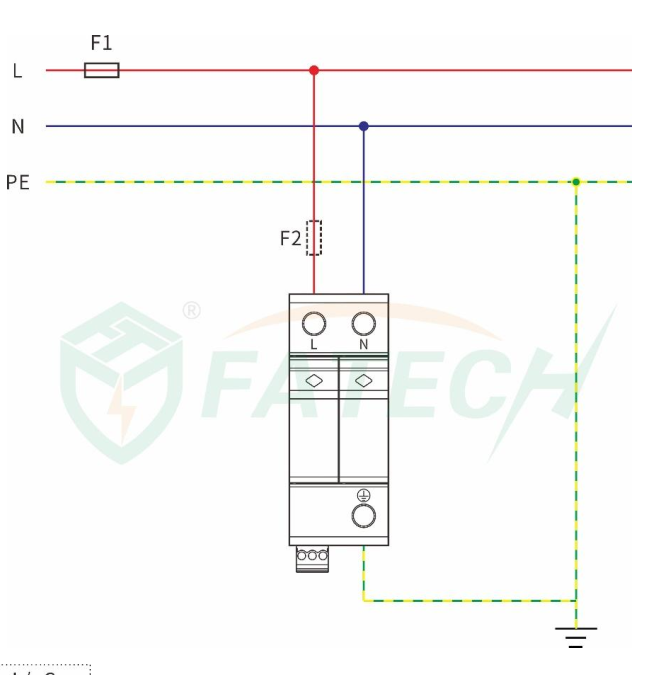

Type of Network | TT , TN |

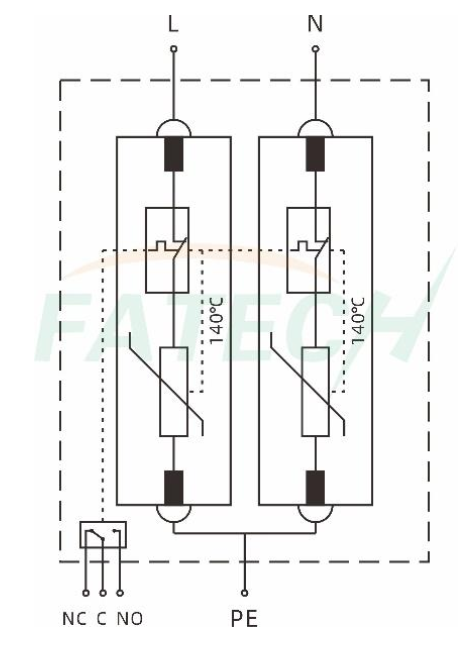

Protection mode | L-PE , N-PE |
Nominal Voltage UN | 220 Vac/50(60)Hz |
Maximum continuous operating voltage UC | 275 Vac/50(60)Hz |
Continuous operating current IC | <20 µA |
Residual current IPE | ≤ 20 µA dc ≤ 500 µA ac |
Standby power consumption PC | ≤ 25 mVA |
Maximum discharge current (8/20μs) Imax | 10 kA |
Nominal discharge current (8/20μs) In | 5 kA |
Voltage protection level Up | ≤ 1.2 kV |
Open circuit voltage Uoc | 10 kV |
Isolation resistance Risol | > 1000 MΩ |
Response time tA | ≤ 25 ns |

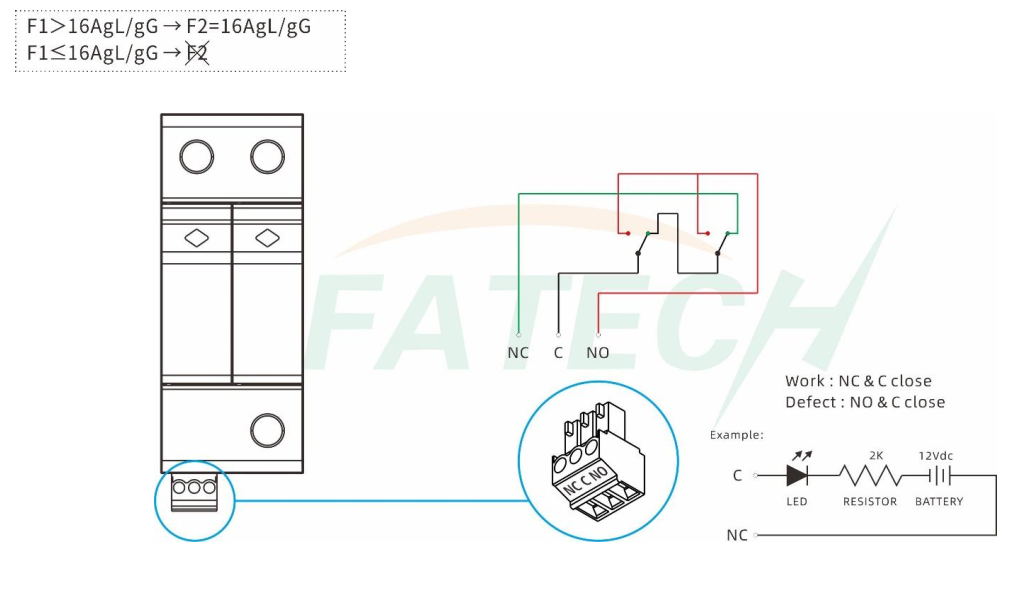

Remote control contact | YES |
Disconnection indicator | Mechanical indicator (Green: OK, Red: Replace) |
Minimum area of connecting cable | 4 mm2 |
Maximum area of connecting cable | 25 mm2 |
Installation location | Inside |

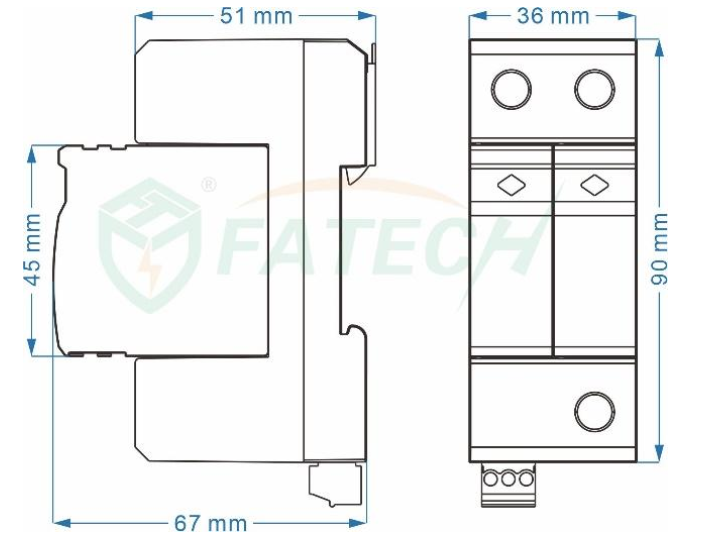

Mounting type | 35mm DIN rail acc. to EN 60715 |
Color | Gray |
Degree of protection | IP20 |
Housing material | UL94V-0 |
Ambient temperature | -40°C ~+80°C |
Altitude | ≤ 2000 m (amsl (above mean sea level)) |
Permissible humidity | 30%~90% |
