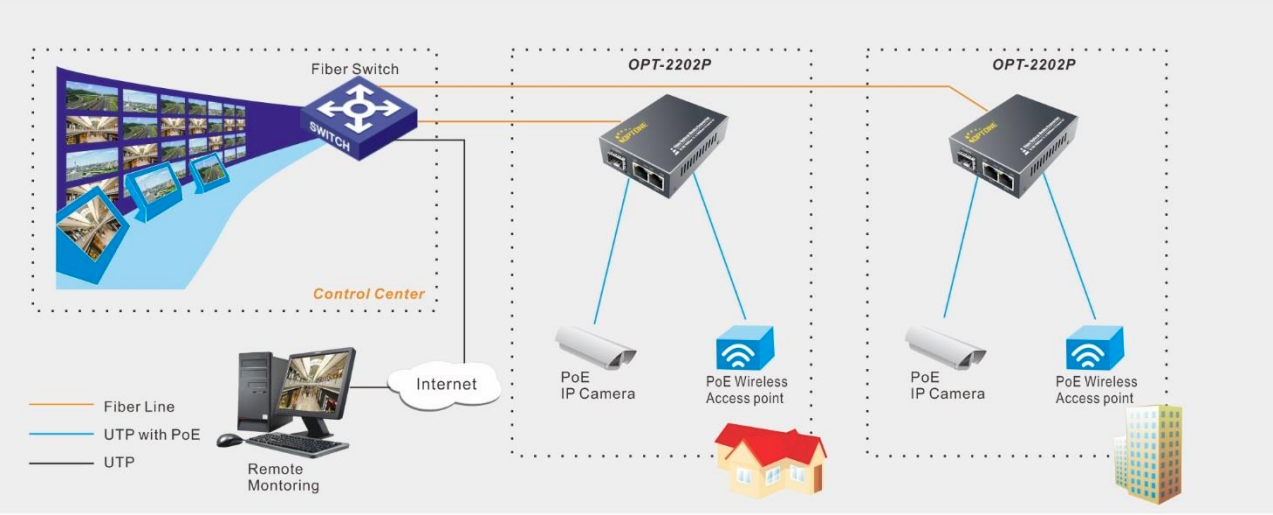

The OPT-2202P series is a End-Span IEEE 802.3at High Power over Ethernet converter designed specifically to satisfy the growing demand for higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a / b / g / n) wireless LAN access points and other network devices that need higher power to function normally. The OPT-2202P High Power over Ethernet converter series is an ideal solution to delivering data and power to network devices directly via the RJ45 Port interface without the need for installing extra power outlets and electrical cabling.
| Interface | 2 x Ethernet+DC port (RJ45) 10/100/1000Base-Tx 1 x Optical port (1x9 or SFP) 1000Base-Fx |
| Optical Port | Available for 1310nm and 1550nm Single mode, and 850nm Multi mode Transfer Distance: up to 120km Connectors: SC, ST, FC and SFP optional Fiber core: 9/125μm on single-mode fiber; 50/125μm and 62.5/125μm on multi-mode fiber |
| Ethernet Port | Cable: Cat 5/5e/6 UTP cable Available speed: force 10Mbps, force 100Mbps , force 1000Mbps and auto-detective 10/100/1000Mbps. Full-Duplex and Half-Duplex auto-negotiation Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing |
| Standard | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-T) IEEE802.3z (1000Base-SX/LX/CX/T) IEEE802.3x (Flow control) IEEE802.3af (Power over Ethernet Standard) IEEE802.3at (Power over Ethernet enhancements Standard) |
| PoE Specification | Power Output: PoE 48V DC, max 30 watts PoE Power Supply type: End-Span Power Pin Assignment: 1/2(+), 3/6(-) PoE Power Budget: 40 watts |
| LED Indicators | Power Status, FX Link/Act, TX Link/Act |
| Power Requirement | Input: 48V DC |
| Physical Characteristics | Housing: Metal enclosure Dimensions: 94 x 70 x 26mm Weight: 0.3kg |
| Environmental Limits | Operating Temperature: -10°C to 70°C Storage Temperature: -20°C to 70°C Operating Humidity: 10% to 90% RH (non-condensing) Storage Humidity: 5% to 90% RH (non-condensing) |
