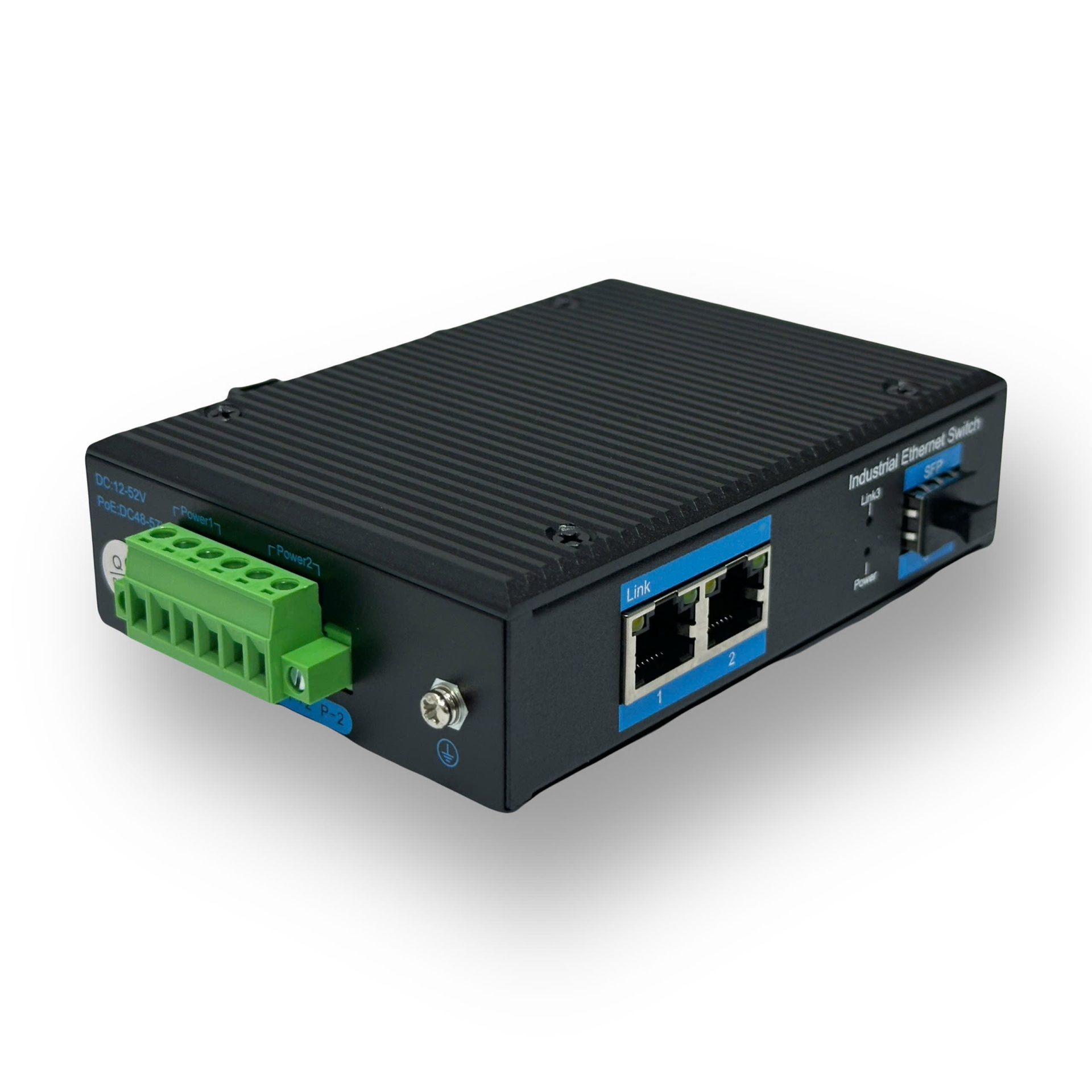

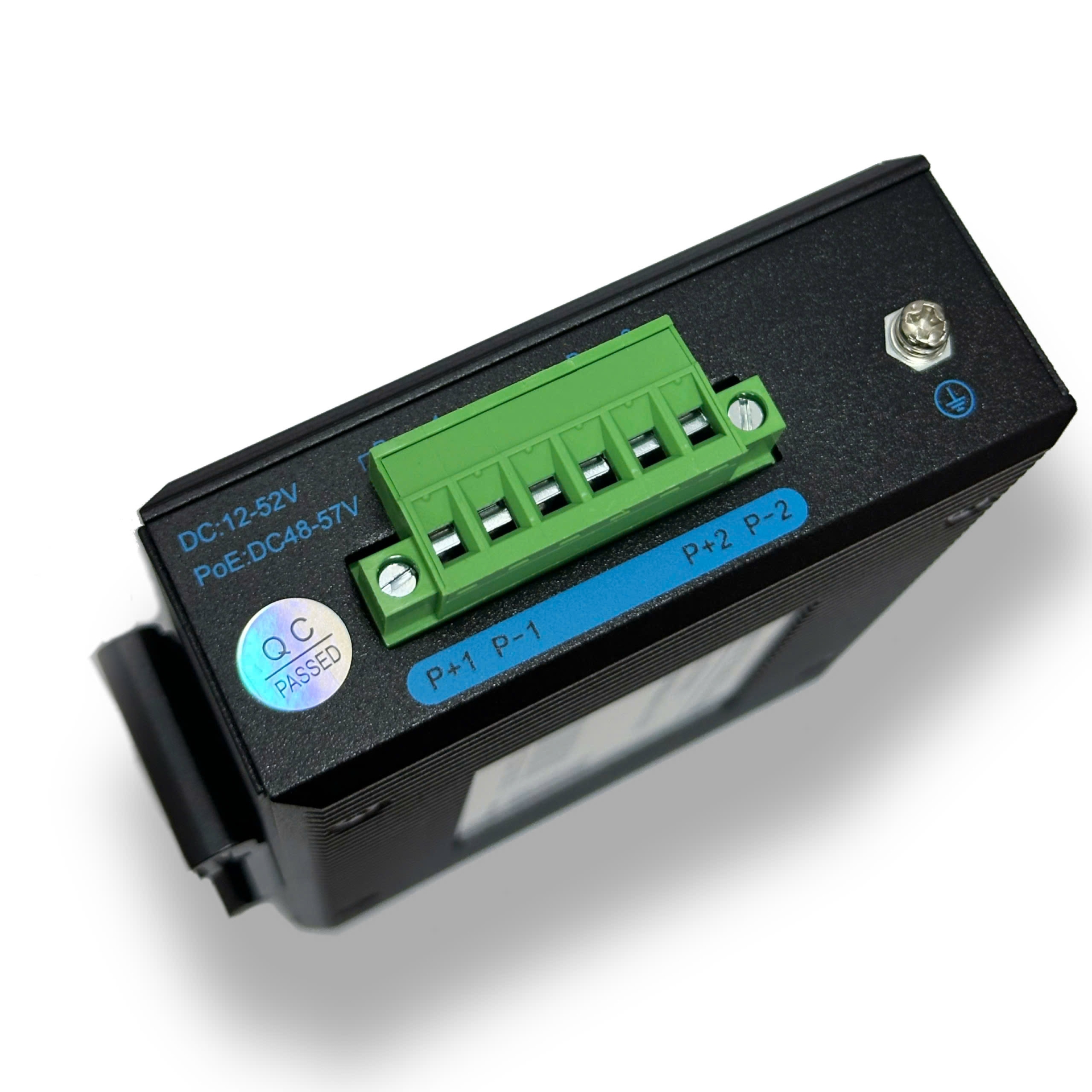

The OPT-GY2012 series industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X) to 1000Base-FX SFP media conversion in harsh industrial environments. OPT-GY2012 series supports redundant power inputs, IP40 protection class and meets EMC industrial level 4 requirements. Its operating temperature ranges from -40 to 85°C. Belonging to Optone Green Ethernet switches series, OPT-GY2012 series full load power consumption is as low as 2.5 watts.
Green Ethernet solution with ultra low power consumption design
Both standard and wide operating temperature
Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x auto-negotiation

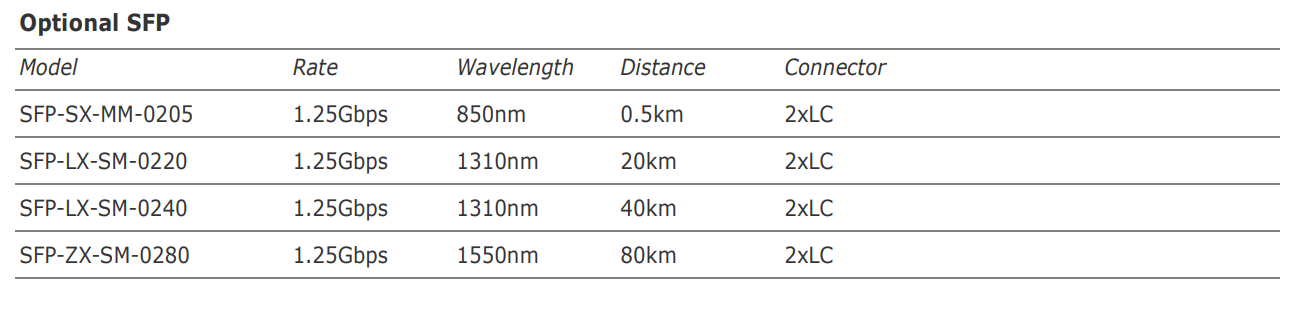

Extends distances ranging from 550m (multi-mode fiber) to 120km (single mode fiber)
Supports auto MDI/MDIX function

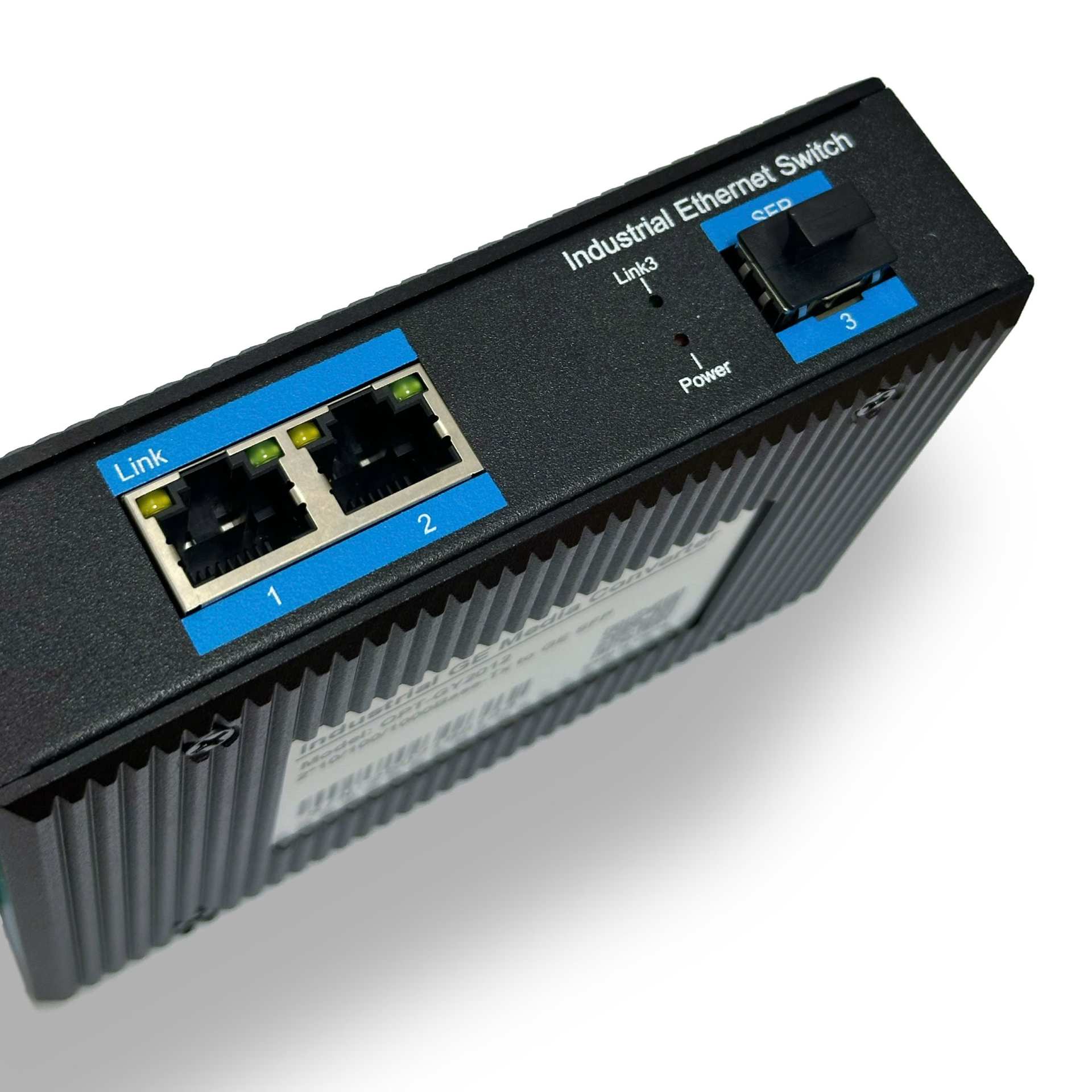

Status LED for easy monitoring of device status
Supports up to 10K Byte Jumbo frames
Support 8k MAC address
IP40 protection class
