Giới thiệu
OPT-IES2014P is OPTONE produced unmanaged 5-port PoE switches, providing 1 Gigabit Ethernet fiber optional port and 4 10/100/1000Base-TX PoE ports compliant with IEEE802.3af and IEEE802.3at. While transmitting data over the cable, each PoE port can output 30 watts to PoE terminals directly, eliminating the need for additional wiring. OPT-IES2014P supports wide operating temperature range from -40°C to 85°C, metal housing with IP40 protection class and redundant power inputs, becoming an economical and harsh environment resistant solution for the ITS, video surveillance and other automation applications.
Tính năng
●Green Ethernet solution with ultra low power consumption design
●Both standard and wide operating temperature
●Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3x auto-negotiation
●IEEE 802.3at, IEEE 802.3af PoE standard compliance
●Support PD detection and PD classification
●Supports auto MDI/MDIX function
●Status LED for easy monitoring of device status
●Supports up to 10K Byte Jumbo frames
●Support 8k MAC address
●Supports DIN-Rail and hang wall mounting
●Support dual power supply backup
●IP40 protection class
Thông số kỹ thuật
| Interface |
4 x Ethernet+PoE port (RJ45) 10/100/1000Base-Tx
1 x Optical port (SFP) 1000Base-Fx
|
| Optical Port |
Available for 1310nm and 1550nm Single mode, and 850nm Multi mode
Transfer Distance: up to 120km
Connectors: SFP
Fiber core: 8.3μm, 8.7μm, 9μm and 10μm on single-mode fiber; 50, 62.5 and 100μm on multi-mode fiber
|
| Ethernet Port |
Cable: Cat 5/5e/6 UTP cable
Available speed: force 10Mbps, force 100Mbps, force 1000Mbps and auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation
Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
|
| Standard |
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-T)
IEEE802.3z (1000Base-SX/LX/CX/T)
IEEE802.3x (Flow control)
IEEE802.3af (Power over Ethernet Standard)
IEEE802.3at (Power over Ethernet enhancements Standard)
|
| Switch Properties |
MAC Table: 8K
Packet Buffer: 1Mbit
Switching Delay: <5μs
|
| LED Indicators | Power Status, Speed Status, FX Link/Act, TX Link/Act |
| PoE Specification |
Power Output: PoE 48V DC
PoE Power Supply type: End-Span
Power Pin Assignment: 1/2(+), 3/6(-)
PoE Power Budget: Each port provides max 30W feed power
|
| Power Requirement |
Input: 48VDC
Consumption：MAX 4.8W(no PD), 124.8W(full PD)
Overload Protection: Support
Reverse Connection Protection: Support
Redundancy Protection: Support
|
| Physical Characteristics |
Housing: Metal enclosure
Protection Class: IP40

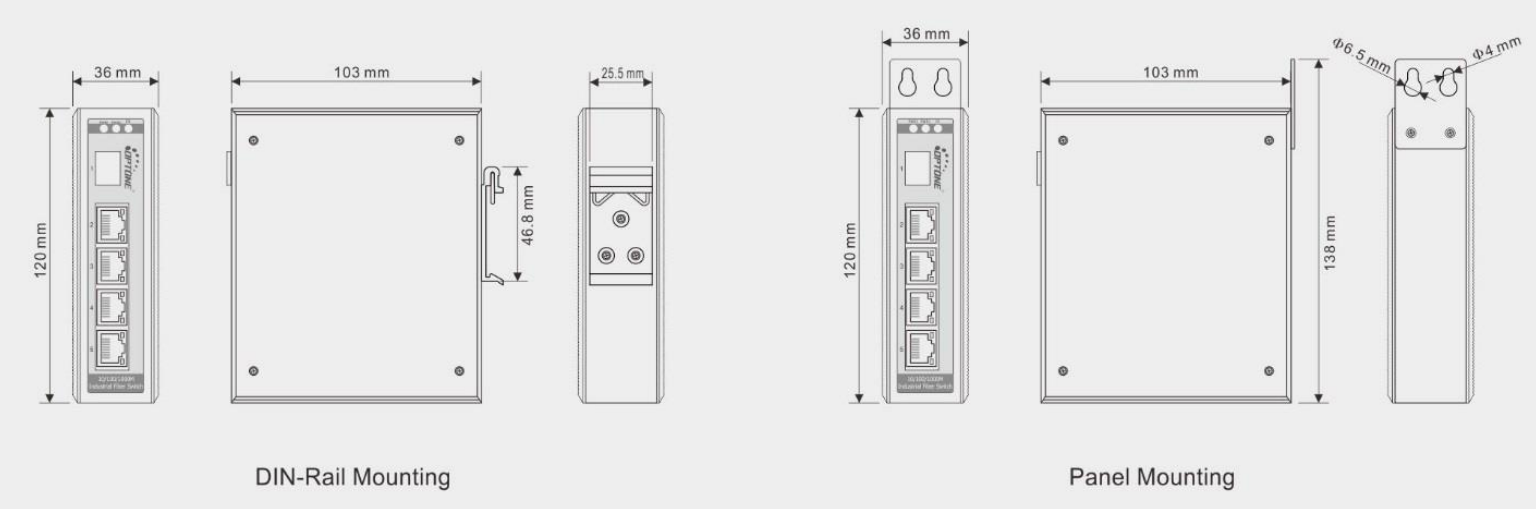

Dimensions: 36 x 120 x 103mm(Excluding the connector, DIN rail and component for panel mounting)
Weight: 0.4kg
Installation: DIN-Rail or Panel mounting
|
| Environmental Limits |
Operating Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Operating Humidity: 10% to 95% RH (non-condensing)
Storage Humidity: 5% to 95% RH (non-condensing)
|
| Industrial Standard |
EMI: FCC/CE/LVD/EMC
EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
|
| Warranty |
5 years |
Thông tin sản phẩm
| Model No. | Description |
|---|---|
| OPT-IES2014P | 4*10/100/1000Base-Tx(PoE) to GE SFP Fiber port |
| Optional SFP | |
| SFP-SX-MM-0205I | SFP，1.25G，850nm，0.5km，LC，Industrial |
| SFP-LX-SM-0220I | SFP，1.25G，1310nm，20km，LC，Industrial |
| SFP-LX-SM-0240I | SFP，1.25G，1310nm，40km，LC，Industrial |
| SFP-ZX-SM-0280I | SFP，1.25G，1550nm，80km，LC，Industrial |
